Fender Repair – Blues Deville

Fender-Repair-Blues-DeVille-Repair

Fender repair time!

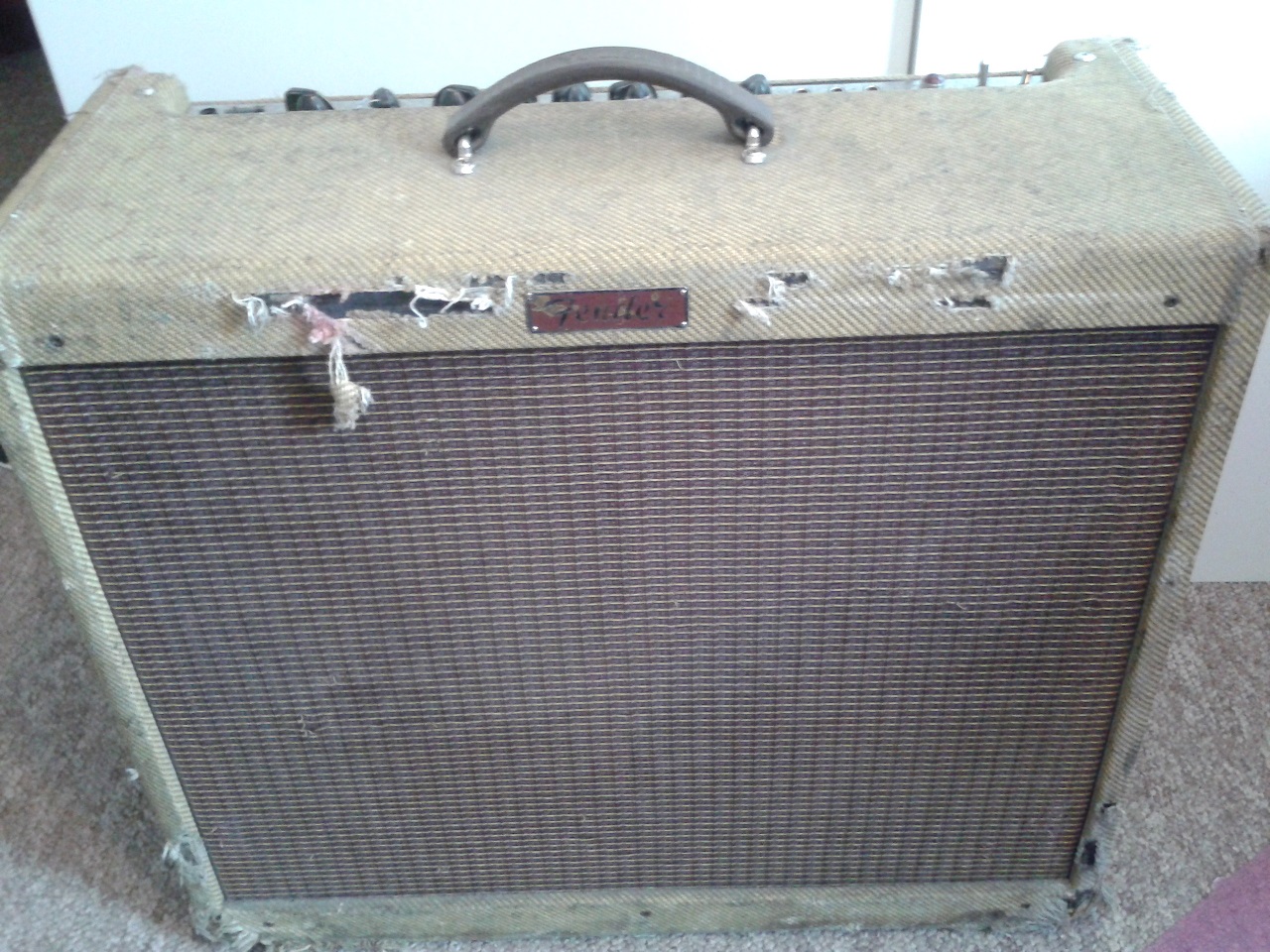

This is a lovely Blues Deville fender amp that’s seen some serious loving! The owner has been gigging it for 15 years. Unfortunately, first the Low gain input died, then the high gain became intermittent. The owner asked for a full valve amp service and I promised to repair the jacks as part of the service.

Repeated insertion and removal of the jack had moved the jack socket and over time pulled the PCB pads from the PCB. This led to the intermittent crackling that was heard and would have eventually torn the thin copper trace off.

Quality chassis mount switchcraft models were used in the repair to replace the two input jacks. These were wired into the PCB using flexible wires to remove the mechanical coupling to the PCB. Now if the jack socket moves then the wires will move and the PCB will not, and the integrity of the connection will be maintained.

If you have a fender repair, please get in touch.

Myth Avoidance: Amp geeks often debate PCB vs turret or tag mounted components. I have to say that unlike many independent amp builders I’m a believer in PCB technology, but for mechanically and thermally stressed parts it is wise separate the component from the PCB to avoid causing stress. This fender repair is a good example of that principle.
